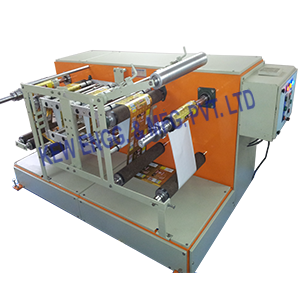

Thermal Transfer Overprinter (TTO) With Winding Rewinding Machine

Thermal Transfer Overprinter (TTO) With Winding Rewinding Machine

Thermal Transfer Overprinter (TTO) With Winding Rewinding Machine

We are exporting and supplying thermal transfer overprinter, which allows printing high density bar-codes and labels that require longevity, paper, film, and even foil substrates. Also, direct thermal printing is popular in applications such as mailing, small parcel delivery, retail and the food industries where most items are stored away from heat and sunlight. It allows heat activated labels and do not require a ribbon.

Standard Features

Thermal Transfer Overprinter (TTO) With Winding Rewinding Machine

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive
Technical Specification

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
