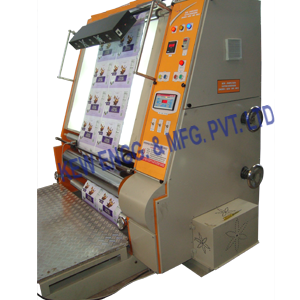

Inspection Slitting Rewinding Machine

Inspection Slitting Rewinding Machine

Inspection Slitting Rewinding Machine

Inspection Slitting Rewinding Machine is used majorly for checking of bad printed materials on Roto Gravure Printing, Flexo Printing Machine, Batch Printing on Doctoring Rewinding Machine, etc. In Inspection slitting rewinding process we allow optional parts like, Line Guide System for Electronic Edge Sensing for Perfect Winding, Air Shaft at Unwinder & Rewinder, Tension Control System for Auto Tension at Unwinder, Stroboscopic Equipment for Inspection with quick drying of Ink Slitting Arrangement and many more.

Standard Features

Inspection Slitting Rewinding Machine

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive
Technical Specification

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
