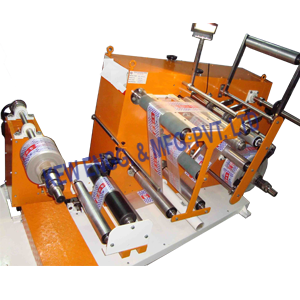

Doctoring Slitting Rewinding Machine for Batch Printing

Doctoring Slitting Rewinding Machine for Batch Printing

Doctoring Slitting Rewinding Machine for Batch Printing

Doctoring Slitting Rewinding Machine for Batch Printing designed and built with Speed: 100 to 150 Mtrs / min. For Laminates like Film, Paper, Aluminium Foil, PVC, Plastic, LD, LDPE, PP, BOPP, Cloth, Biscuit Wrapper, Oil Wrapper, Soap Wrapper, Detergent Wrappers and many more. Salvage Rewinding (Correcting badly Wounded Reels for Inspection & Doctoring Operation.) Printing of Mfg. Date, Expiry Date, Batch No., Sr. No.

Standard Features

Doctoring Slitting Rewinding Machine for Batch Printing

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive
Technical Specification

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
