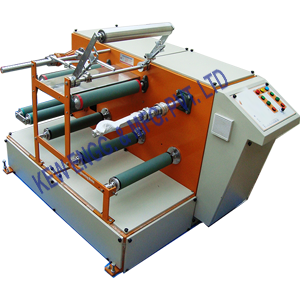

Doctoring Rewinding Machine

Doctoring Rewinding Machine

Doctoring Rewinding Machine

We are dealing in high-quality performance and long durability on Doctoring Rewinding Machine. Our Doctoring Rewinding is highly used for all types of Laminates like Foil, Paper, LDPE, HDPE, PVC and many more. It is manufactured with us most precision which ensures zero maintenance up to the to 10 years.

We have been successfully Manufacturing, Exporting & Supplying all types of Doctoring Rewinding Machine and Winding Rewinding Machine for Inkjet Printer & Batch Printing for the last 25 years from Ahmedabad, Gujarat, India. We are the winner of 3 times National Award and 2 times the International Award for Quality manufacturing.

Standard Features

Doctoring Rewinding Machine

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is a great substitute for online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive
Technical Specification

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
